omnidirectional tracking soalr electronic device

Published:2011/8/16 1:50:00 Author: | Keyword: omnidirectional tracking, soalr, electronicdevice | From:SeekIC

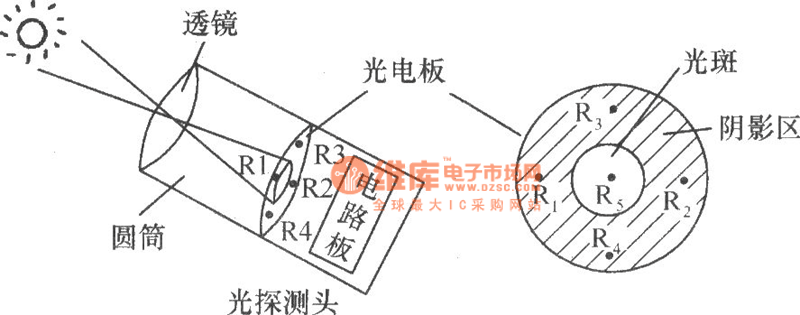

The working principle:it uses the photovoltaic solar device,and if it can not track the sun,its performance will greatly reduce. Here the device allows it to achieve full track of horizontal and vertical direction of the sun,and it will automatically reset at night.To track the sun, it must have solar probe. As shown in the picture, the solar probe of the device consists of a convex lens, five light-sensitive resistors, the control circuit board and a cylinder.
