Multiplexed_temperature_sensors

Published:2009/7/19 22:10:00 Author:Jessie | From:SeekIC

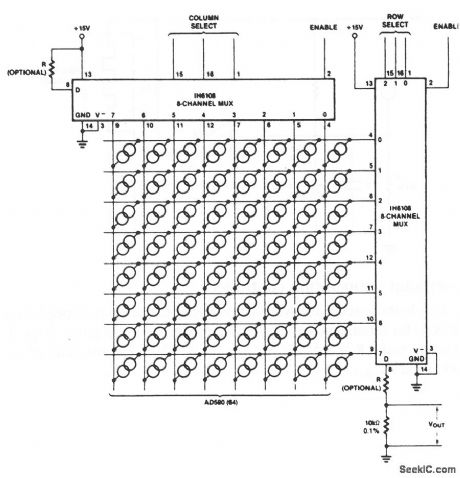

This circuit shows 64 AD590 transducers that are connected as multiplexed temperature sensors. A 6-bit digital word selects one of the 64 sensors (each at a different location, as desired). Harris Semiconductors Data Acquisition 1991 p 12-s
