Phasemeter_for_sinusoidal_signals

Published:2009/7/20 5:47:00 Author:Jessie | From:SeekIC

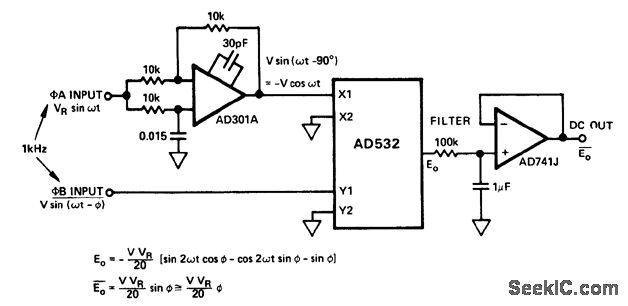

Phasemeter for sinusoidal signals. This circuit provides a good linear measure of phase for small angles up to 14° and a sinusoidal measure of angles between +90°and -90°(courtesy Analog Devices, Inc.).
