SOUND_SENSOR

Published:2009/7/9 5:37:00 Author:May | From:SeekIC

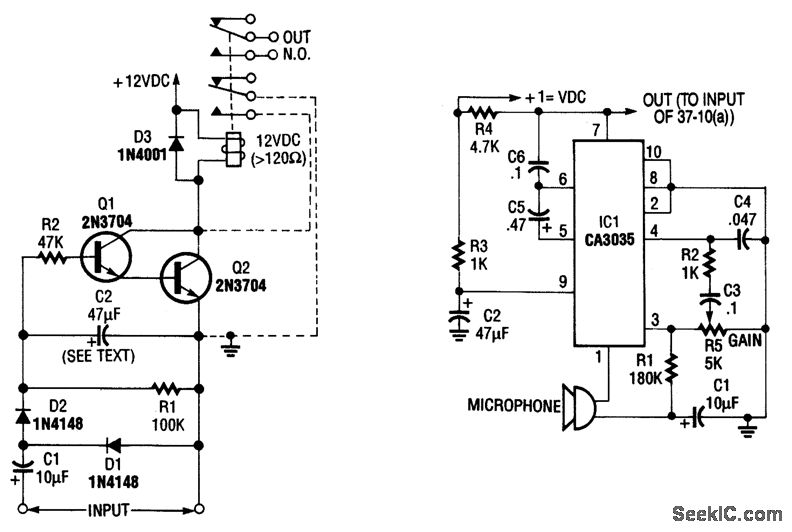

By using a microphone，high－gain amplifier(Fig.37－10(b)),and detector－relay driver(Fig.37-10(a)asound-detecting alarm system can be constructed.If you want a latching setup，make the dotted connection to the relay shown h Fig.37-10(a)
