Sensor circuit 103: Ion detector circuit

Published:2011/7/14 21:18:00 Author:zj | Keyword: Sensor circuit, Ion detector circuit | From:SeekIC

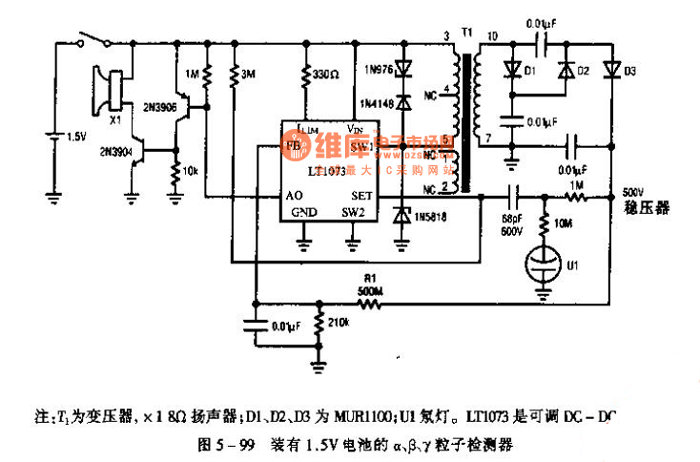

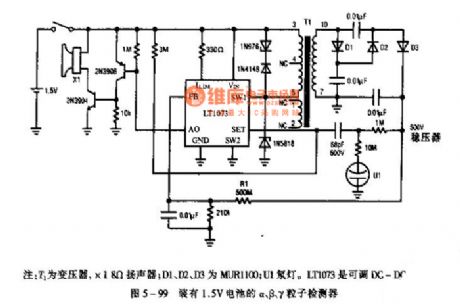

Note: T1 is transformer, *1 8Ω speaker; D1, D2, D3 are MUR1100; U1 neon. LT1073 is adjustable DC-D Figue 5-99 α, β, γ particle detector with 1.5V battery
