Square Wave and Sine Wave Generator Circuit

Published:2011/6/30 4:08:00 Author:Joyce | Keyword: Square Wave , Sine Wave , Generator | From:SeekIC

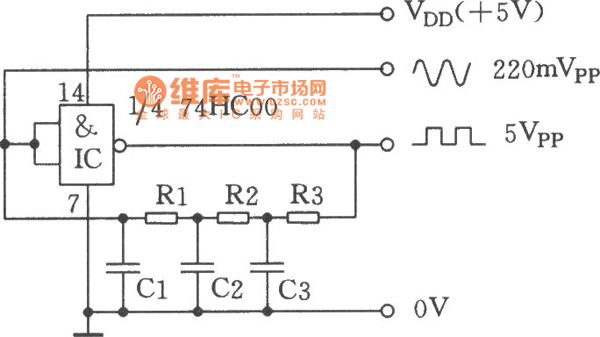

As shown in the figure is a square wave and sine wave generator. A clock generator is composed of an ordinary inverse gate and a few components only, which can output two waveforms of the same frequency at the same time: square wave and sine wave. The oscillator operates well in the frequency range between 100 Hz and 10 MHz. If 74 HCU00 which has no buffering output level is used instead of 74 HC00, it will achieve a better effect.
