TSV temperature sensor typical application circuit

Published:2011/3/21 1:29:00 Author:Allen | Keyword: TSV, temperature sensor | From:SeekIC

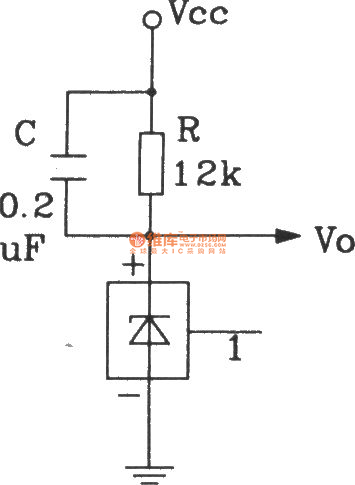

In the circuit, the temperature sensitivity of output voltage, Vo is 10mV/℃; R is a current limiting resistor; careerist C is used to improve the circuit stability. The voltage drop on lead resistance will introduce some measurement error, when the test location is far away the reading location.
