UV sensor contour circuit

Published:2011/5/5 3:51:00 Author: | Keyword: UV sensor, contour | From:SeekIC

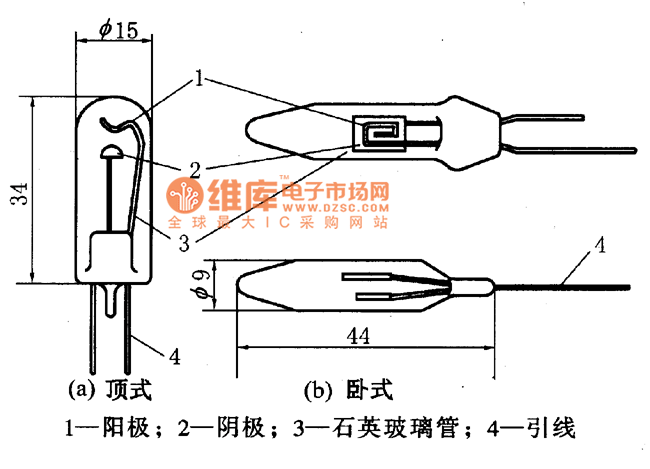

The structure of UV sensor is as shown in the picture. (a)the top structure, (b) the horizontal structure. In the quartz glass tube there are two electrodes, oneis the anode, the other is the cathode. A large quantity of special gas is sealed in the quartz glass tube.
