piezoresistive pressure sensor circuit

Published:2011/5/5 22:28:00 Author:Sharon | Keyword: piezoresistive, pressure sensor, | From:SeekIC

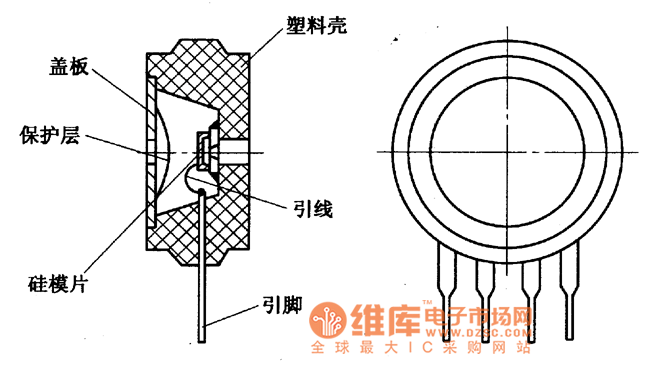

MPX205O and MPX2l00 type pressure sensor is a silicon piezoresistive pressure sensor, with the function of thermistor temperature compensation. The basic elements of its structure is as shown.
