pressure sensor application circuit

Published:2011/5/5 22:28:00 Author:Sharon | Keyword: pressure sensor, application | From:SeekIC

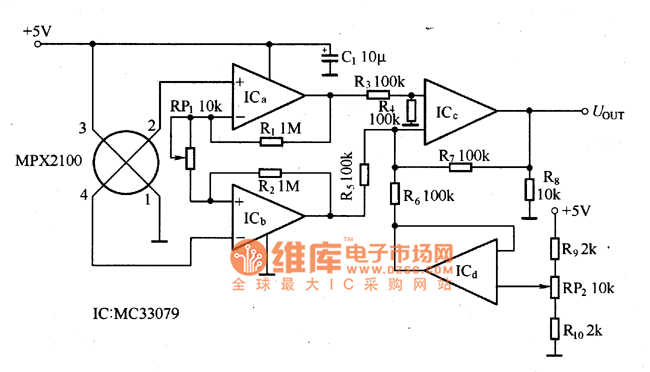

MPX2100 pressure sensor typical application circuit is as shown in the picture. RP1 in thepictureis used for full-scale adjustment, RP2 is used for zero adjustment when the pressure is zero.
