12_MC_CRYSTAL_STANDING_WAVE_DETECTOR

Published:2009/7/24 2:17:00 Author:Jessie | From:SeekIC

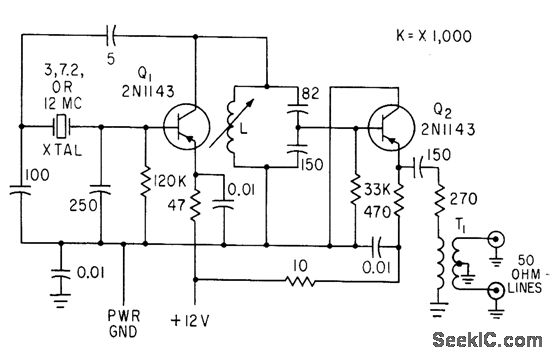

Transistorized crystal oscillator Q1 and emitter-follower Q2 feed 1 V rms into two balanced transmission lines going to standing-wave detector.-O. C. Haycock, and K. D. Baker, Measuring Antenna Impedance in the lonosphere, Electronics, 34:2, p 88-92.
