1MHz quartz crystal oscillator circuit

Published:2011/7/4 6:08:00 Author:Christina | Keyword: 1MHz, quartz crystal, oscillator | From:SeekIC

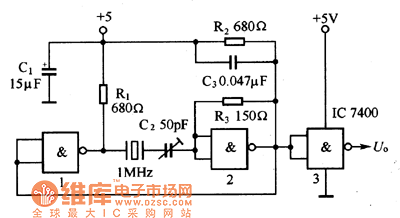

The oscillator circuit which is composed of the 1MHz quartz crystal resonator and the NAND gate is as shown in the figure, the NAND gate 3 is the output buffer stage. This circuit can be used to calibrate the standard frequency. Figure 1 The 1MHz quartz crystal oscillator circuit
