20_40_CPS_VARIABLE_SWEEP

Published:2009/7/24 2:23:00 Author:Jessie | From:SeekIC

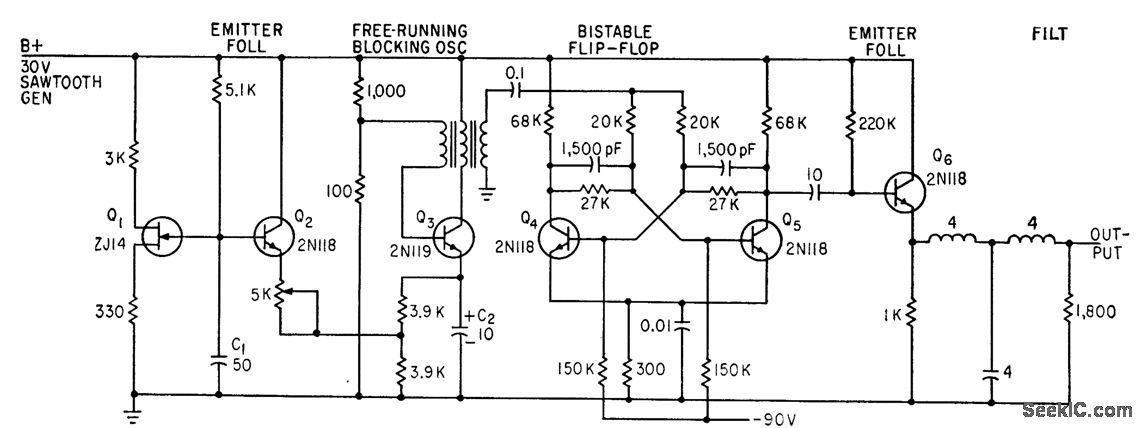

Used to lest servos and related equipment. Sawtooth waveform developed by unijunction transistor circuit is used to key blocking oscillator.-M. Rosen, Subaudio Swapt Signal Generator, Electronics, 33:17, p 67-68.
