2_METER_DUAL_VMOS

Published:2009/7/16 6:30:00 Author:Jessie | From:SeekIC

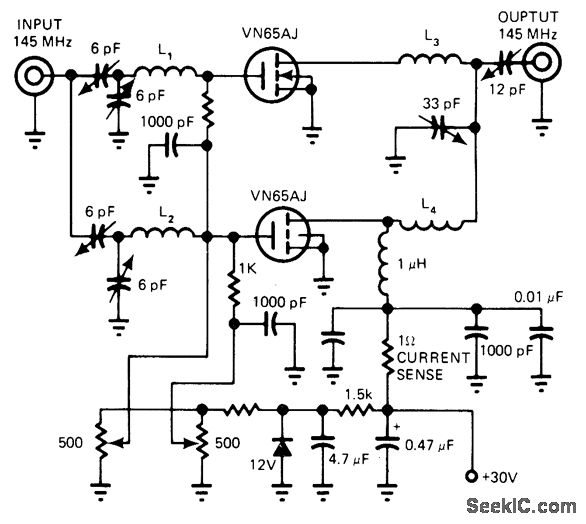

Provides 10-W PEP output at 146 MHz for amateur applications. Noise figure is only 2.35 dB, and two-tone IMD is -30 dBC.- E. Oxner, Will VMOS Power Transistors Replace Bipolars in HF Systems?, EDN Magazine, June 20, 1977, p 71-75.
