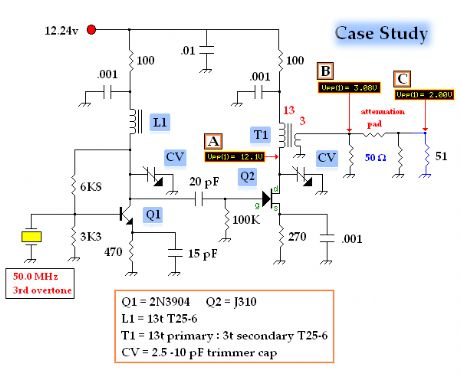

50 MHz crystal oscillator and buffer

Published:2012/12/28 0:02:00 Author:muriel | Keyword: 50 MHz , crystal oscillator, buffer | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Signal_Processing/50_MHz_crystal_oscillator_and_buffer.html

Print this Page | Comments | Reading(3)
