6 Input Mixer

Published:2012/11/19 21:36:00 Author:muriel | Keyword: 6 Input , Mixer | From:SeekIC

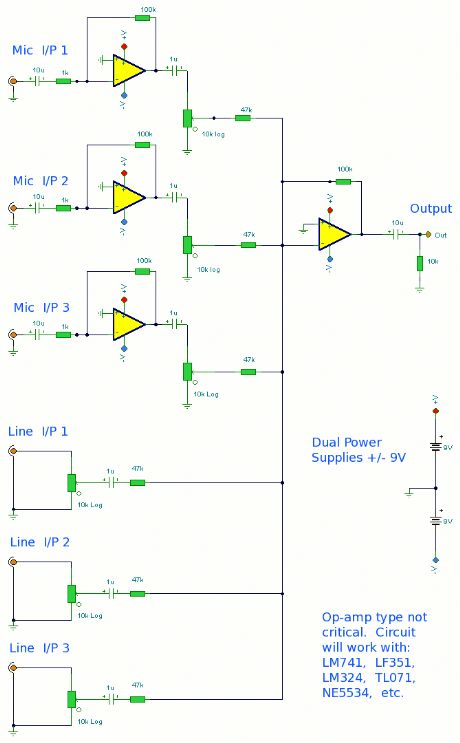

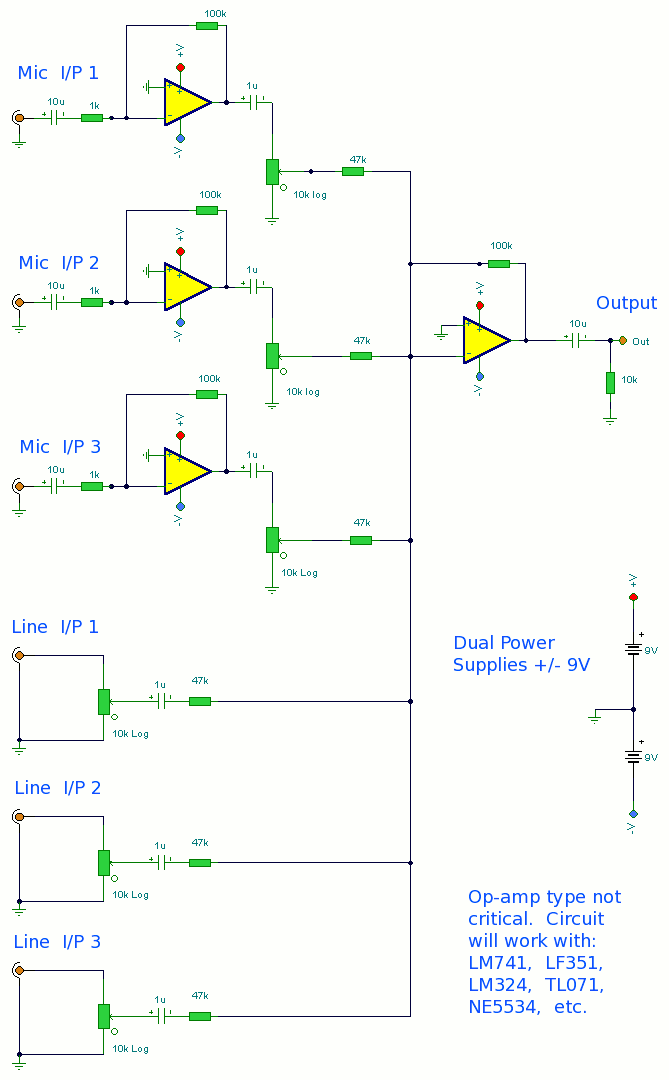

A simple mixer with 3 line inputs and 3 mic inputs using commonly available parts.
