8W PLL Stereo Transmitter with LCD

Published:2012/11/14 0:36:00 Author:muriel | Keyword: 8W , PLL , Stereo Transmitter , LCD | From:SeekIC

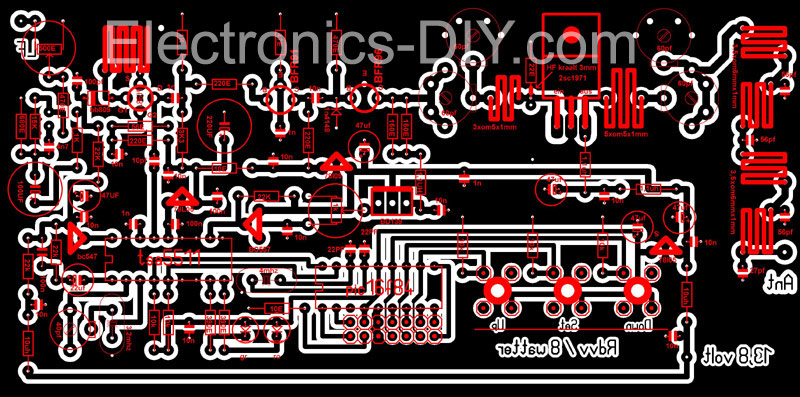

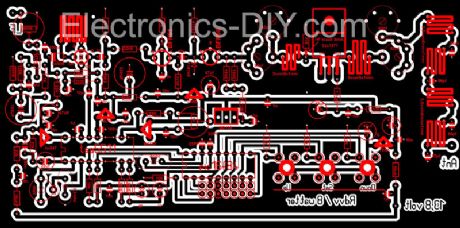

Very stable PLL FM transmitter based on TSA5511 synthesizer. Frequency is performed with three buttons through PIC16F84 microcontroller. Frequency is displayed on 16x1 LCD. Transmitter oscillator is based around BF981, BFR91, BFR96 transistors. 2SC1971 RF power transistor can be replaced with 2N4427 or 2N3553 but they will provide less output power.
