AM_FM_IF_amplifier_and_detector_with_tuning_meter

Published:2009/7/20 2:29:00 Author:Jessie | From:SeekIC

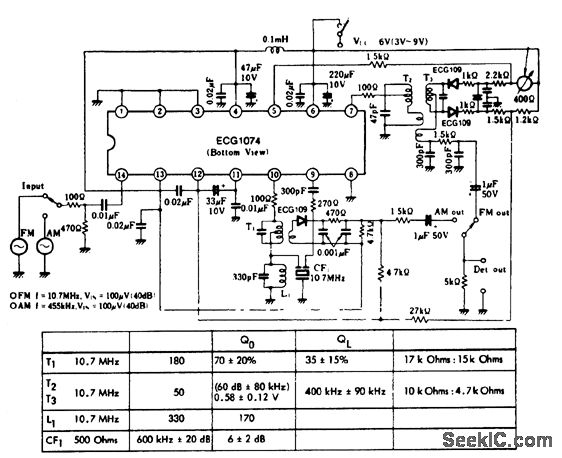

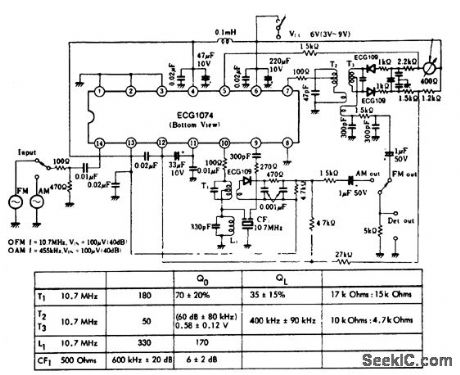

AM/FM IF amplifier and detector with tuning meter.AF output is about 10 mV for 400-hertz modulation at 30%.Typical voltage gain is 90 dB for FM and 80 dB for AM(courtesy GTE Sylvania Incorporated).
