AM Receiver

Published:2012/11/21 21:12:00 Author:muriel | Keyword: AM Receiver | From:SeekIC

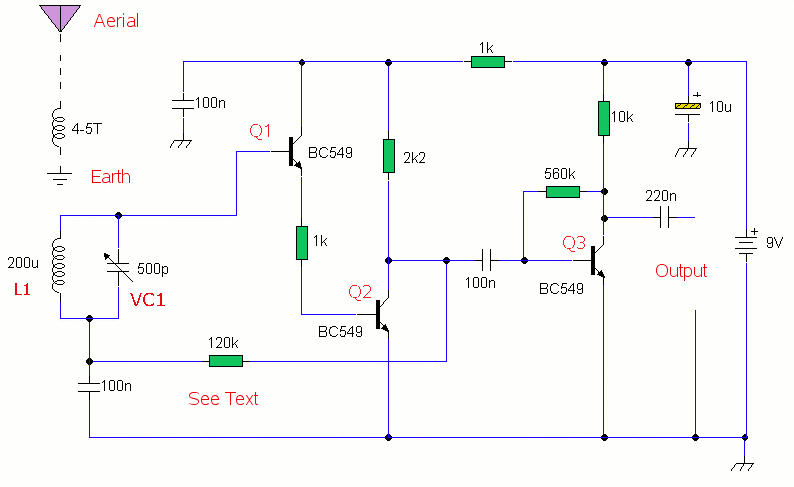

This is a compact three transistor, TRF receiver with fixed feedback. It is similar in principle to the ZN414 which is now replaced by the MK484. The design is simple and sensitivity and selectivity of the receiver are good.
