AM_broadcast_tuner_with_RF_amplifier_for_automobile_applicatio

Published:2009/7/20 2:44:00 Author:Jessie | From:SeekIC

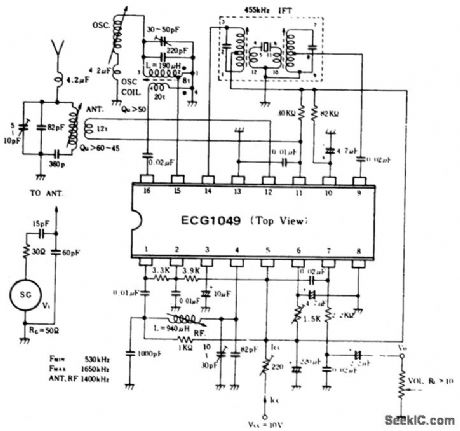

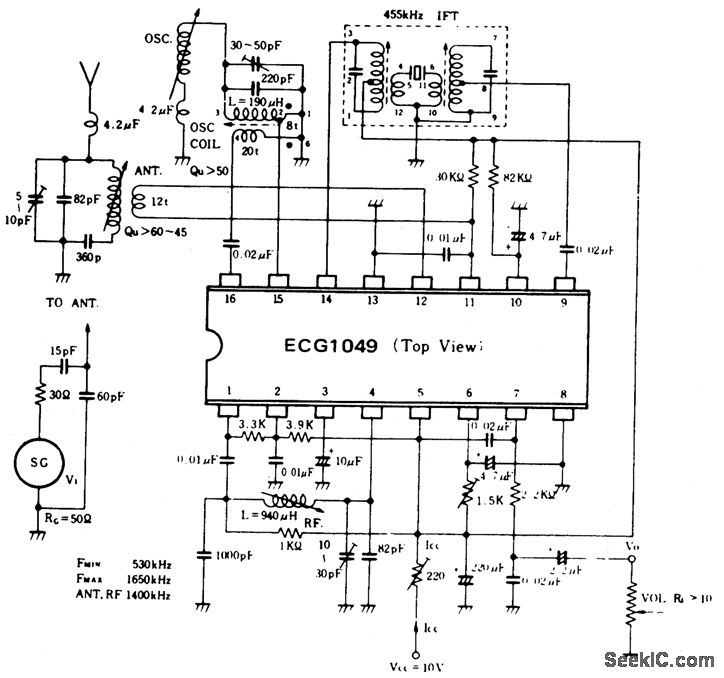

AM broadcast tuner with RF amplifier for automobile application. Audio output is 80 mV with 400-hertz modulation at 30%. The IF is 455 kHz. All coils and transformers are standard and can be purchased at Radio Shack (courtesy GTE Sylvania Incorporated).
