AUDIO_DETECTOR_WITH_NOISE_LIMITER

Published:2009/7/16 1:21:00 Author:Jessie | From:SeekIC

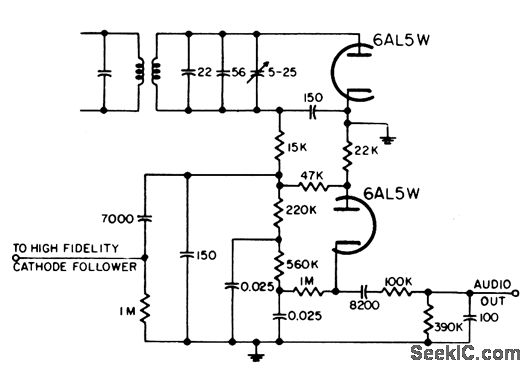

Conventional 6AL5 series noise limiter and diode detector are here augmented by elaborate lone control network.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N12-1.
