BandPass Filter circuits

Published:2012/11/14 0:41:00 Author:muriel | Keyword: BandPass Filter circuits | From:SeekIC

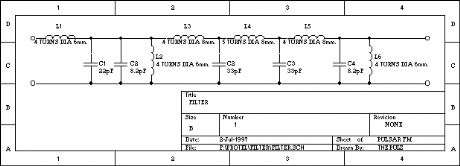

This bandpass filter is in fact a combined high- and lowpassfilter. The first stages are a highpass (f>70MHz) and the last stages a low pass (f<180MHz). The lost of this filter is several watts when driven with 20[Watts], but the output signal is (when adjusted with a spectrum analyser) very clean.
