CAT2404P memory integrated circuit diagram

Published:2011/5/11 3:34:00 Author:Fiona | Keyword: memory | From:SeekIC

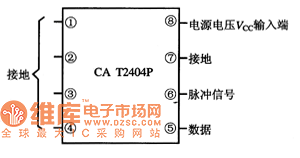

CAT2404P is a piece of memory memory integrated circuits.It's widely used in color TV, air conditioning control circuits, audio systems, DVD players control system. 1. Features CAT2404P integrated circuits' in-circuit is mainly composed by the internal circuitry memory matrix, the data input / output interface circuit, the clock pulse processing circuits, test circuits, and other auxiliary functions circuit etc. 2. pin functions and data CAT2404P integrated circuits use 8-pin dual in-line package, the pin functions are shown in Figure 1, the typical operating voltage are listed in Table 1. Figure 1 CAT2404P integrated circuits' pin functions Table 1 The typical operating voltage of CAT2404P integrated circuits
