CC4527-BCD series multiplier integrated circuit diagram

Published:2011/5/11 3:33:00 Author:Fiona | Keyword: multiplier integrated | From:SeekIC

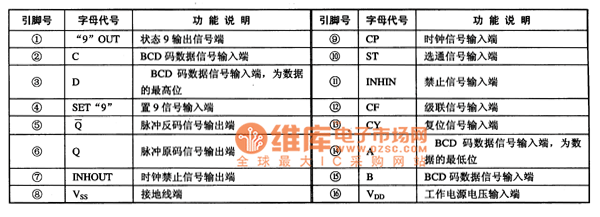

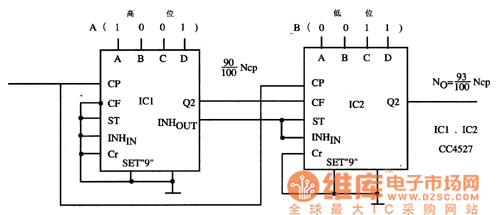

CC4527 is a BCD series multiplier integrated circuit and a universal digital device.It's widely used in various digital signal processing circuit, such as digital instrumentation, communications systems etc.1. The pin functions CC4527 integrated circuits use 6-pin dual in-line package.The pin functions are listed in Table 1. Table 1 CC4527 integrated circuits' pin functions 2. Typical application circuit Evenly spaced type of frequency ratio control circuit posed by the CC4527 integrated circuits is shown in Figure 1. Figure 1 Evenly spaced frequency ratio control circuit posed by the CC4527 integrated circuits
