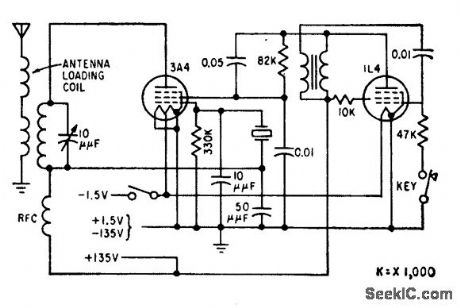

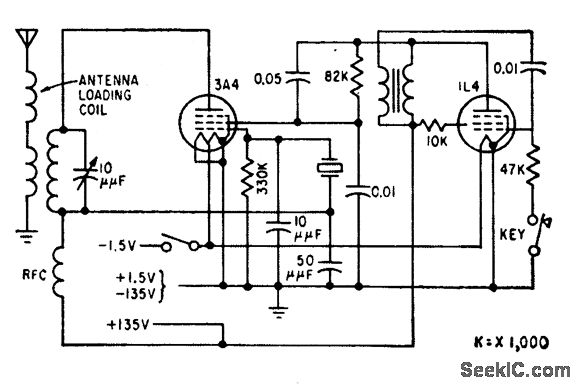

CLASS_C_CB_TRANSMITTER

Published:2009/7/23 22:53:00 Author:Jessie | From:SeekIC

Control signal may be tone-modulated a-m, with different tones to control several functions on one frequency.-L. G. Sands, Citizens Radio Revision Spurs Equipment Design, Electronics, 32:15, p 55-57.
