COMBINATION_SCHMITT_MONOSTABLE

Published:2009/7/21 9:20:00 Author:Jessie | From:SeekIC

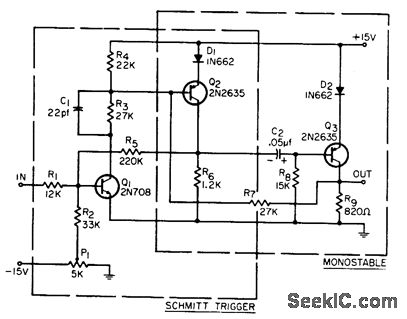

Three transistors in complementary connection give Schmitt trigger (Q1-Q2) und mono-stable mvbr (Q2-Q3) in which triggering level is accurately controlled. Output pulse width is independent of input because circuit is regenerative.-G. Marosi, Combination Schmitt Trigger-Monostable Multivibrator, EEE, 13:10, p 77.
