CURRENT_PULSE_GENERATOR

Published:2009/7/21 22:19:00 Author:Jessie | From:SeekIC

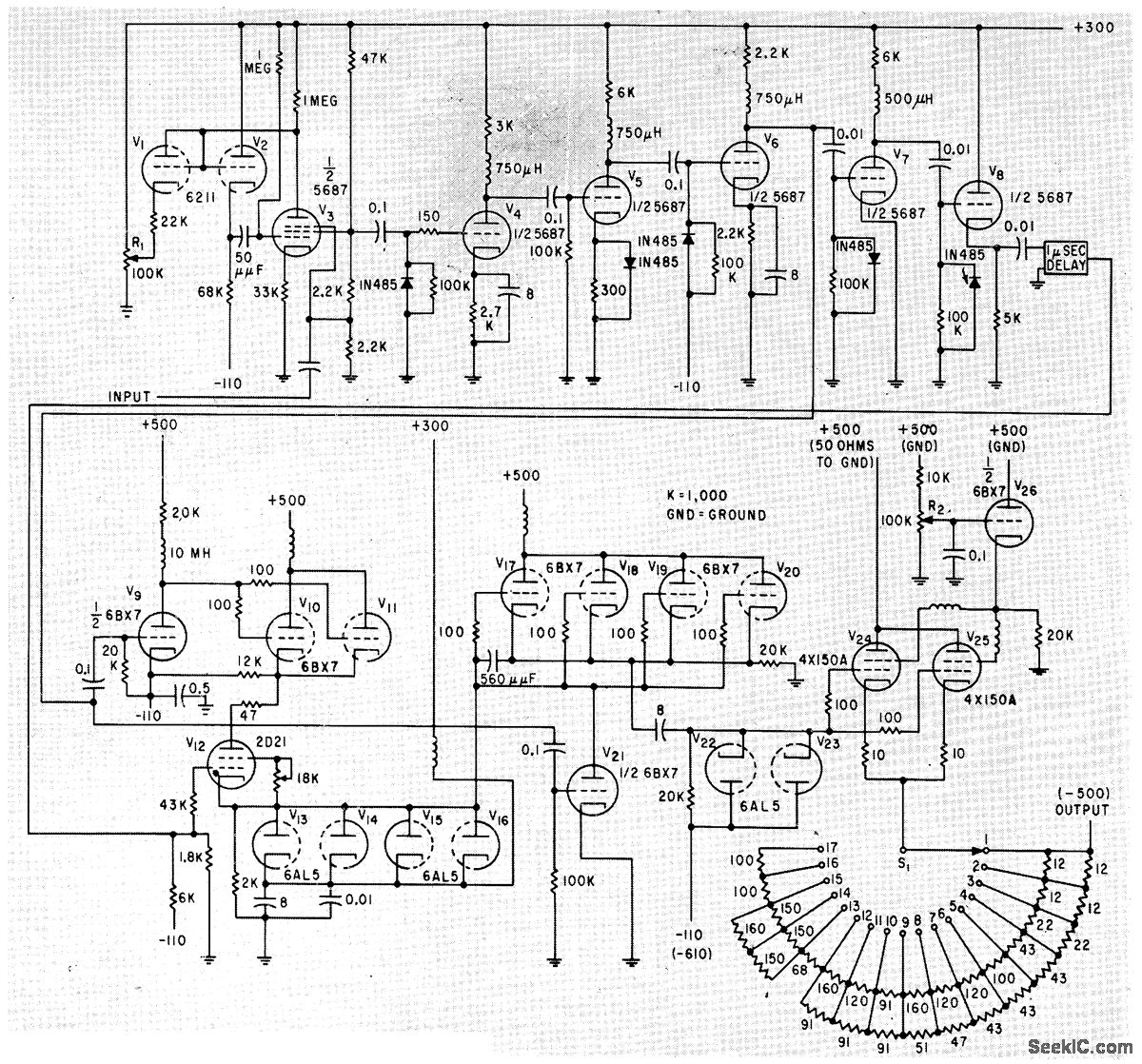

Used for production testing of ferrite memory cores. Provides pulse amplitudes from 200 ma to 3 amp at repetition rates up to 20 kc.-H. W. Goss, Current Pulse Generator Tests Magnetic Cores, Electronics, 33:1, p 80-81.
