DYNAMIC_TRANSISTOR_TESTER

Published:2009/7/22 22:51:00 Author:Jessie | From:SeekIC

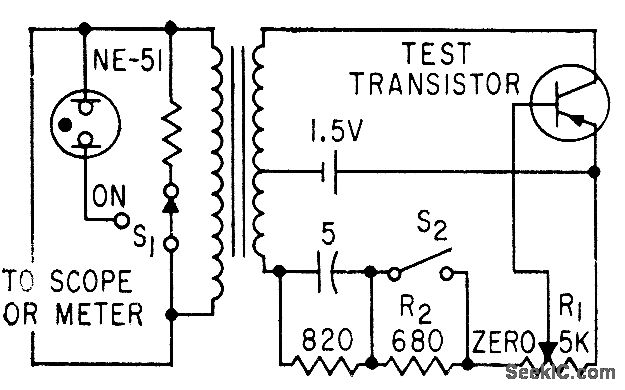

Uses blocking oscillator and depends on fact that open, shorted, or excessively leaky transistors will not oscillate. Good transistors should oscillate with R1 set at zero, and make neon lamp glow if S1 is on.-L. G. Sands, Dynamic rosters For Transistors, Electronics, 33:8, p 66-67.
