Doorphone Intercom

Published:2012/11/19 21:39:00 Author:muriel | Keyword: Doorphone Intercom | From:SeekIC

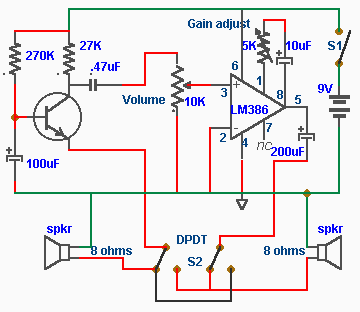

A simple Intercom made with a single transistor and low power audio amplifier LM386. The circui uses 8 ohm speakers, which also double as a microphone.
