EMERGENCY_NOISE_GENERATOR

Published:2009/7/2 7:22:00 Author:May | From:SeekIC

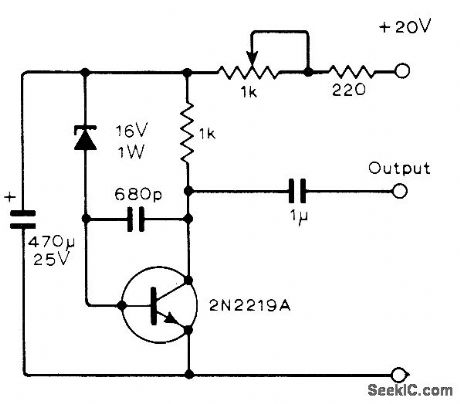

Simple circuit generates noise in audio range at wideband level adjustable with 1 K pot from 0 to over 1 V. lf 680-pF capacitor is omitted, noise output goes up to 30 MHz with wideband level more than 5 V.-D. Di Mario. Simple Noise Generator. Wireless World. May 1978. p 70.
