FET_RAMP_GENERATOR

Published:2009/7/23 22:56:00 Author:Jessie | From:SeekIC

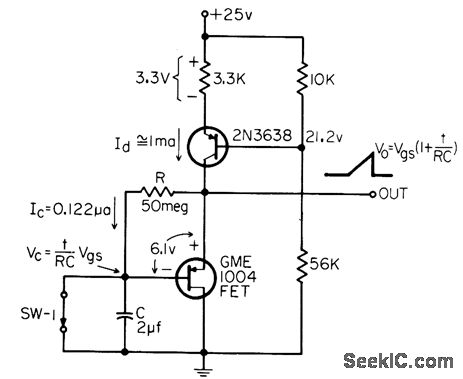

Use of mos let gives very slow rate-of-rise linear ramp generator (less than 0.1 V/sec). Longer durations can be obtained by using larger values for R and C.-J. M. Phalan, MOS FETs Give Long Time, Constant Ramps, EEE, 14:4, p 46.
