FIXED_GAIN_ANTENNAFIER

Published:2009/7/19 22:39:00 Author:Jessie | From:SeekIC

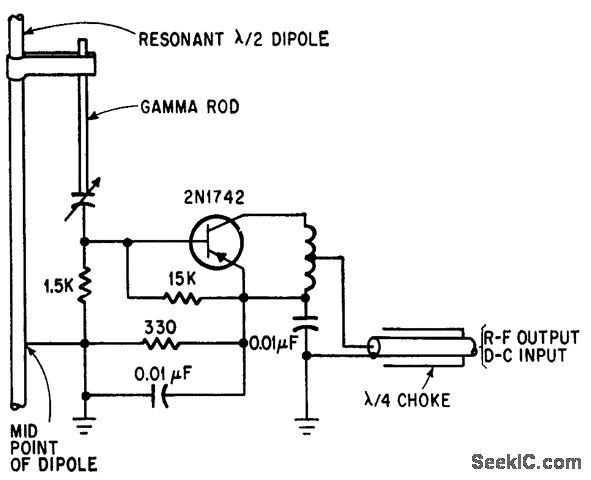

Transistorized dipole antennafier operates with fixed bias for maximum gain or minimum noise temperature. Gamma rod provides matching so transistor sees pure resistance.-J. F. Rippin, Making the Antenna an Active Partner, Electronics, 38:16, p 93-96.
