FM_ratio_detector_circuit

Published:2009/7/20 2:39:00 Author:Jessie | From:SeekIC

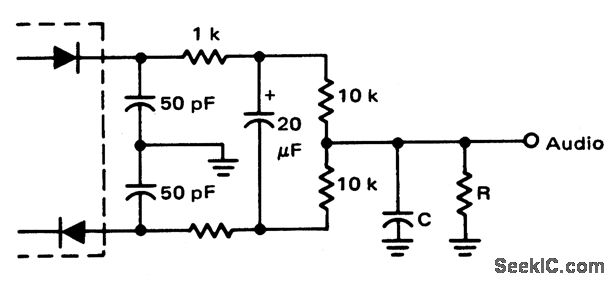

FM ratio detector circuit. With R equal to 22K and C equal to 100 pF the roll off occurs at about 70 kHz (courtesy Motorola Semiconductor Products Inc.).
