FM_stereo_processor_2

Published:2009/7/19 23:00:00 Author:Jessie | From:SeekIC

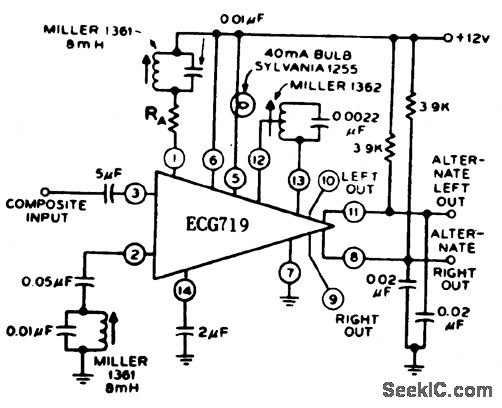

FM stereo processor. The 14-pin DIP performs the standard stereo functions of 19 kHz amplifier, frequency doubler, stereo indicator lamp driver, and stereo demodulator. The l0 also includes two alternate emitter follower outputs (courtesy GTE Sylvania Incorporated).
