HORIZONTAL_SYNC_TRANSIENT_DISPLAY

Published:2009/7/20 20:38:00 Author:Jessie | From:SeekIC

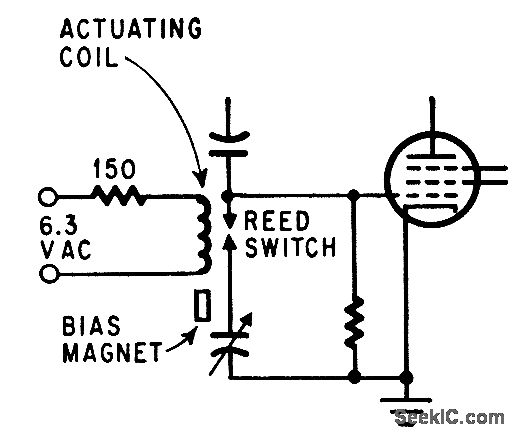

Reed switch operated at field frequency from ac heater voltage, with permanent magnet providing magnetic bias to get 60 cps, permits observing single transient continuously while making tv receiver circuit adjustment. -M. B. Knight, Reed Switches for Breadboarding, Electronics, 37:16, p 93
