Harmonic generator (LM318)

Published:2013/1/28 2:03:00 Author:Ecco | Keyword: Harmonic generator | From:SeekIC

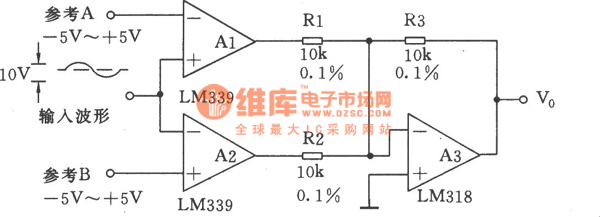

The harmonics generator composed of two comparators and a summing amplifier is shown in Figure. It can make use of any non- party sine, triangle, sawtooth waveform to get the harmonic which can be widely used in phase-locked loop, waveform generator, electronic musical instruments and other harmonic applications.
