I_F_A_F_REFLEX

Published:2009/7/19 23:41:00 Author:Jessie | From:SeekIC

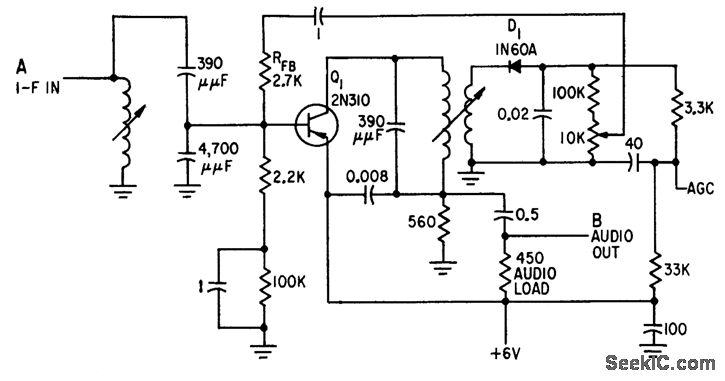

Single transistor gives simultaneous amplification at intermediate and audio frequencies in economy radio. Careful design provides high gain and sufficient un distorted output power to drive audio output transistor at full rating without motorboating.-J. Waring, How To Design Reflexed Transistor Receivers, Electronics, 32:19, p 70-72.
