Keying Oscillator Circuit

Published:2011/5/9 5:10:00 Author:Sue | Keyword: Keying, Oscillator | From:SeekIC

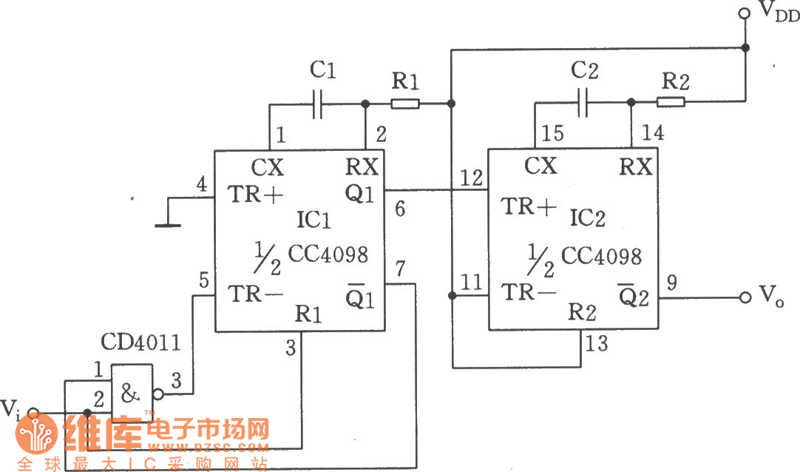

As seen in the figure is keying oscillator circuit composed of monostable trigger CC4098, Four-2 input terminal and NOT gate CC4011. This circuit has a adjustable frequency and duty ratio. It is mainly usd in low frequency signal generator with a low accuracy requirement.
