LC square wave generator

Published:2011/4/13 1:50:00 Author:Ecco | Keyword: LC , square wave , generator | From:SeekIC

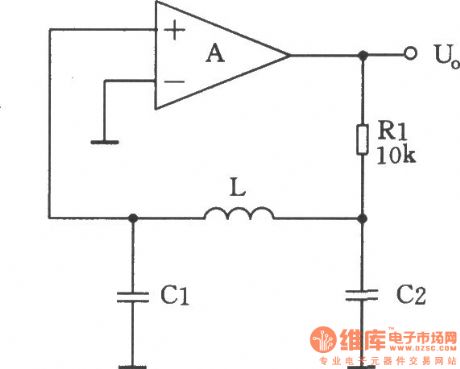

Square-wave generator with LC circuit can get a better frequency stability, it's as shown in the chart. This three-terminal oscillator of capacitor can be used to generate a square wave, but an operational amplifier is used as the active component.
