LINEAR_SAWTOOTH

Published:2009/7/23 22:34:00 Author:Jessie | From:SeekIC

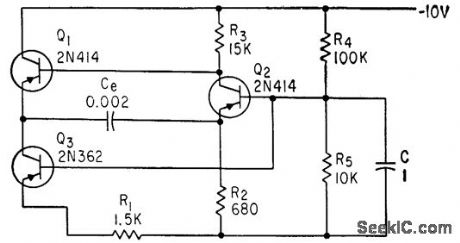

Q1 and 02 in emitter-coupled mvbr and constant-current generator Q3 produce sweep having linearity comparable to that of vacuum-tube circuits.-B. Rakovic, One More Transistor Makes a Linear Sawtooth, Electronics, 35:49, p 50-51.
