LONG_PULSE_MONO

Published:2009/7/16 12:39:00 Author:Jessie | From:SeekIC

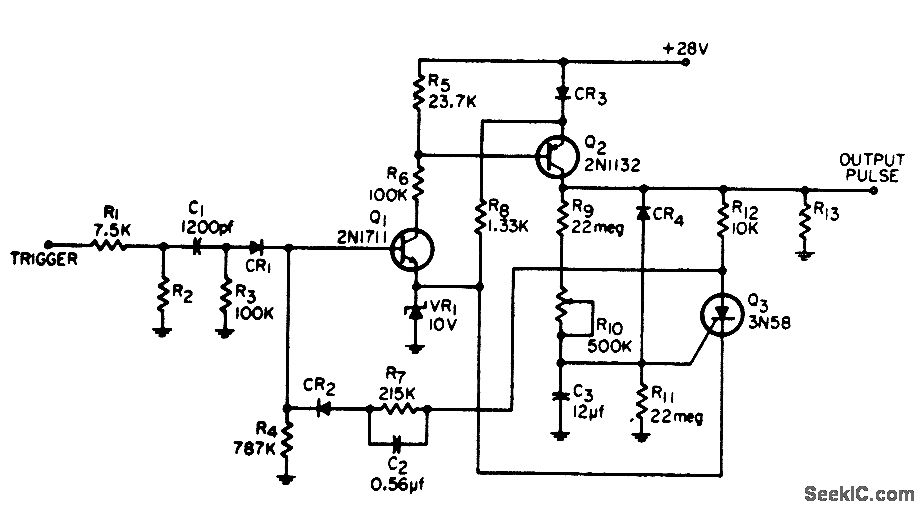

Advantages are high current gain, long pulse width with relatively small timing capacitance, and low dissipation when off. Pulse width is 11 sec. Drives 19.6K load.-J. M. Meuer, High-Gain, Long-Pulse Monostable, EEE, 14:4, p 41.
