LOW_POWER_RING_COUNTERLESS_THAN_6_mW

Published:2009/7/16 22:00:00 Author:Jessie | From:SeekIC

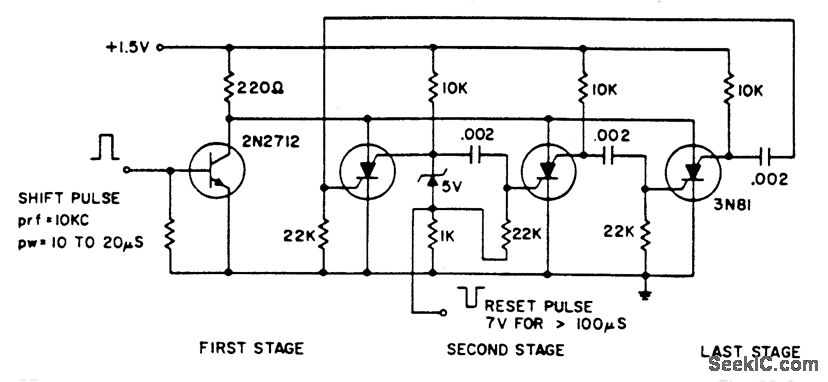

The ring counter operates from 1.0 to 6.0 V and requires only 6 mW at 1.5 V. The reset pulse turns on the first stage with its trailing edge. The maximum shift pulse width increases with voltage and approaches 70 μs for a 6.0-V supply. Minimum pulse width is 10 μs.
