Low frequency Therapeutic Equipment (the 2nd)

Published:2011/6/28 7:51:00 Author:Felicity | Keyword: Low frequency Therapeutic Equipment (the 2nd) | From:SeekIC

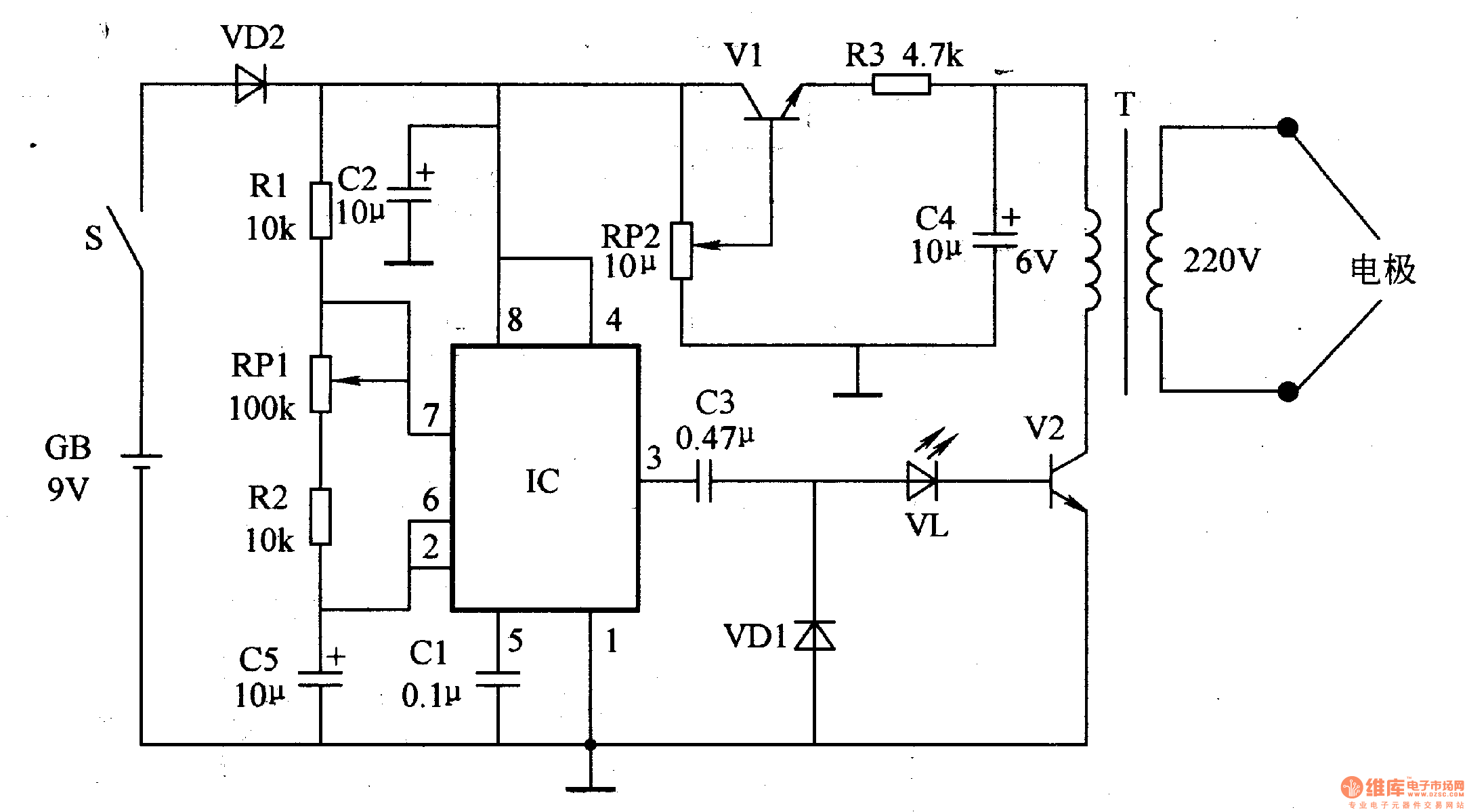

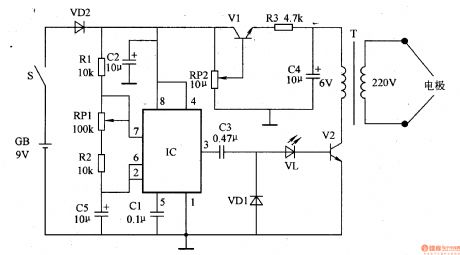

Work of the circuit The circuit consists of time based integrated circuit IC, transistor V1, V2 and pulse transformer T. (It is showed in picture 9-20.) Turn on the power switch S and the OSC begins to work. Pin 3 of IC produces pulse signal of low frequency. This signal makes V2 working. Then the pressure is transmitted to muscular tissue or acupoints. It relaxes or stimulates acupoints to give some assisting treatment to some chronic diseases.
