Model_control_receiver

Published:2009/7/23 21:55:00 Author:Jessie | From:SeekIC

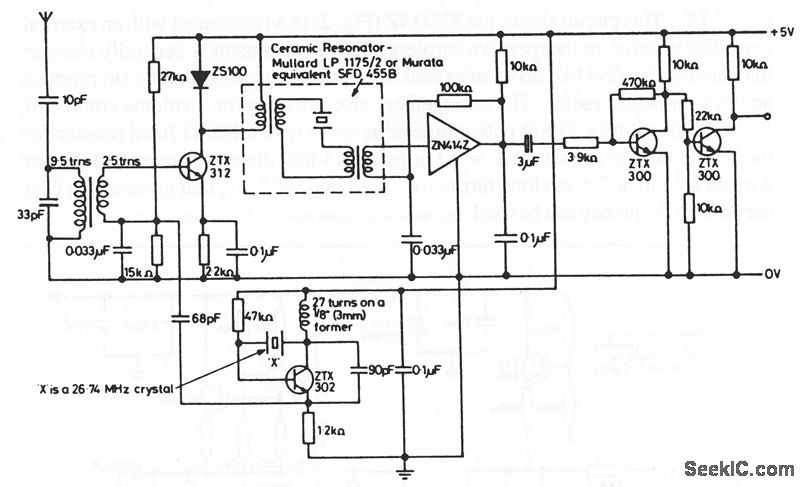

This circuit shows the ZN414Z (Fig. 2-14A) used as an IF amplifier for a 27-MHz superhet receiver, such as those used in model remote-control systems.
