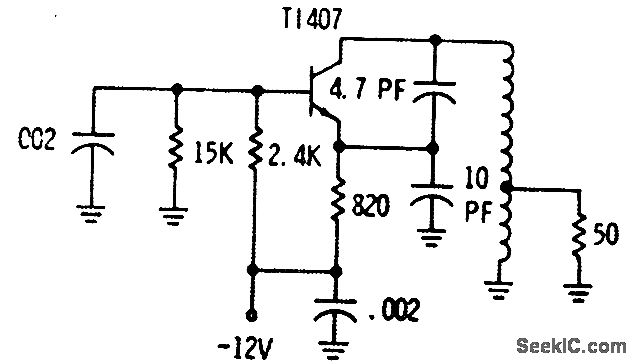

100_MC_COLPITTS

Published:2009/7/20 2:00:00 Author:Jessie | From:SeekIC

Uses conventional bipolar transistor, which has low noise in operation from low-impedance voltage generator. Temperature drift is much greater than with fet. -Fets Come Alive: Clinic Unveils Practical Circuits, EEE, 14:4, p 16-18.
