100_MC_VRAICAP_OSCILLATOR

Published:2009/7/14 22:40:00 Author:Jessie | From:SeekIC

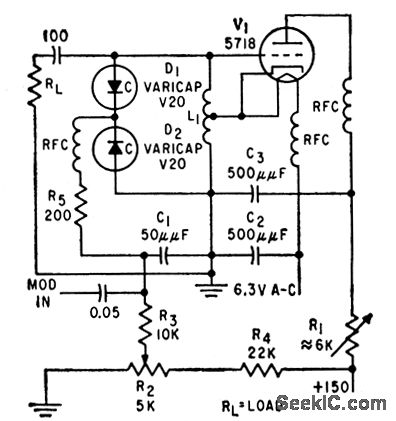

Modulator consists of two variable-capacitance diodes in series to r-f and in parallel to audio modulating signals and d-c bias. Frequency deviation is 28 Mc peak-to-peak with modulating signals less thon 28 v and negligible modulating power.-C. Arsem, Wideband F-M with Capacitance Diodes, Electronics, 32:49, p 112-113.
