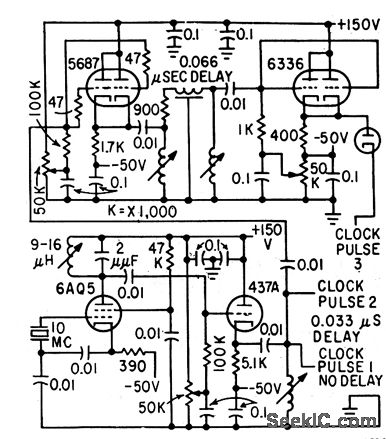

10_MC_CLOCK_OSCILLATOR

Published:2009/7/11 3:02:00 Author:May | From:SeekIC

Output through cathode follower is split into three channels(two are not shown) to get clock pulses at three phases.-G,O. Olson,Design of High-Frequency clock Pulse Generators Electronics,32:35,p56-57.
