10_MC_CRYSTAL

Published:2009/7/19 22:11:00 Author:Jessie | From:SeekIC

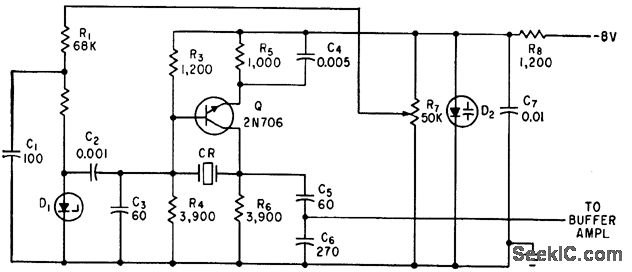

Collector voltage of transistor is kept low and is stabilized by zener diode D1 in microminiature oscillator using crystal in 10-Mc fundamental mode. Voltage-sensitive capacitor D2 and R7 serve for fine frequency adjustmets.-M. Lysobey, Microminiature Crystal Oscillator Using Wafer Modules, Electronics, 35:15, p 60-61.
