10_MHz_CRYSTAL_OSCILLATOR

Published:2009/7/1 3:11:00 Author:May | From:SeekIC

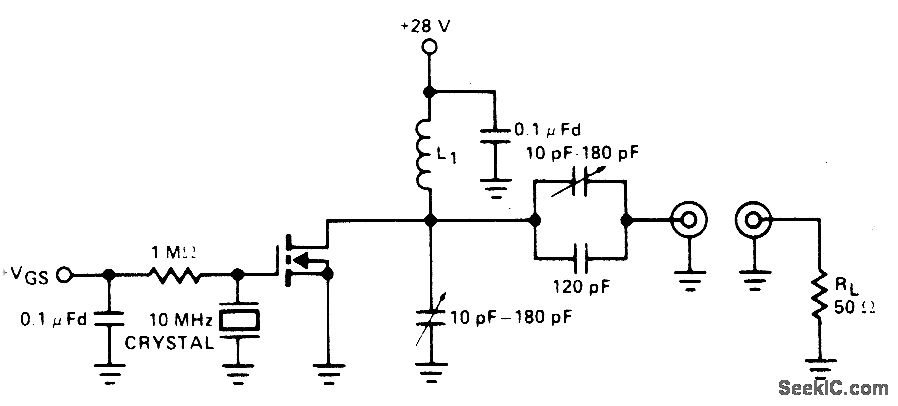

This xtal oscillator is a FET equivalent of a vacuum tube tuned to plate-tuned grid xtaloscillator. Feedback is via the drain to gate capacitance.
