1_MC_F_M_OSCILLATOR

Published:2009/7/14 22:38:00 Author:Jessie | From:SeekIC

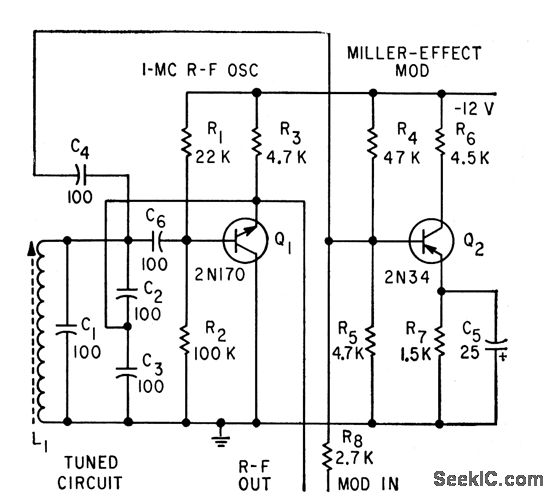

Combines Q multiplier with Miller effect to produce simple and stable f-m oscillator and modulator.-P. W. Wood, Transistorized F-M Oscillator, Electronics, 32:5, p 64.
